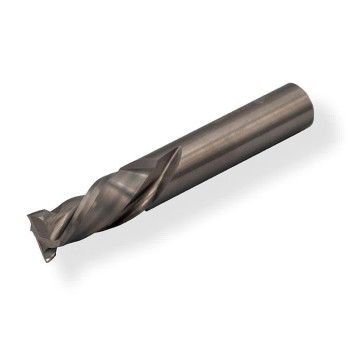

Reference: 8261501

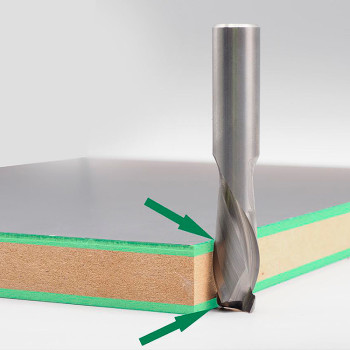

Part of the compression series, developed in high wear-resistant submicron grain carbide and equipped with chip breakers. Its geometry and helix finishes are highly optimised for efficient chip evacuation, allowing use at high feed rates. Designed to deliver high-quality finishes, free of delamination on the outer layers of:
· Hard and soft woods.
· Plywood, MDF, melamine chipboard, OSB, etc.
· Solid Surface materials: Corian®, Krion®, Varicor®, etc.
Security policy
Shipping policy
Over 250 options for different applications and techniques, in a variety of colours, thicknesses and sizes.
We'll soon have new materials and accessories to boost your projects.
| End mill name | Endurance Compression HPC |
|---|---|

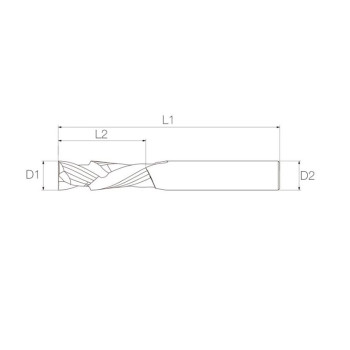

| Diagram |
|
| Reference | 8261501 |
| D1 (mm) | 6 |
| D2 (mm) | 6 |
| L2 (mm) | 22 |
| L1 (mm) | 64 |
| Z | 2+2 |
| Details |
|
Find the right CNC end mill for your project at the NomadTech Store
Part of the compression series, developed in high wear-resistant submicron grain carbide and equipped with chip breakers. Its geometry and helix finishes are highly optimised for efficient chip evacuation, allowing use at high feed rates. Designed to deliver high-quality finishes, free of delamination on the outer layers of:
· Hard and soft woods.
· Plywood, MDF, melamine chipboard, OSB, etc.
· Solid Surface materials: Corian®, Krion®, Varicor®, etc.
