Reference: 8367504

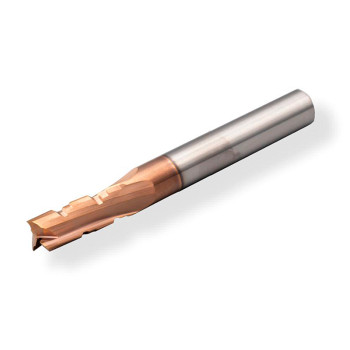

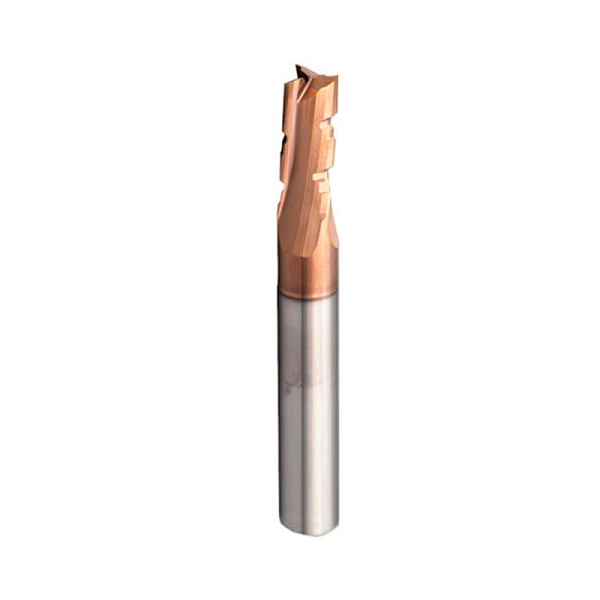

High wear-resistant solid carbide tool, designed with an innovative gradual-action chip breaker. Acts as a heat dissipator and cutting stabiliser, allowing machining of high-density materials at high feed rates, achieving quality finishes without marking the edge. Recommended for cutting:
· High-pressure laminates (HPL, Trespa®, Formica®).
· Bakelite.
· High-density cellulose laminates.
· Hardwoods and phenolic plywood.
RH: right-hand helix.
LH: left-hand helix.
Security policy
Shipping policy
Over 250 options for different applications and techniques, in a variety of colours, thicknesses and sizes.
We'll soon have new materials and accessories to boost your projects.
| End mill name | HPL-Cutter |
|---|---|

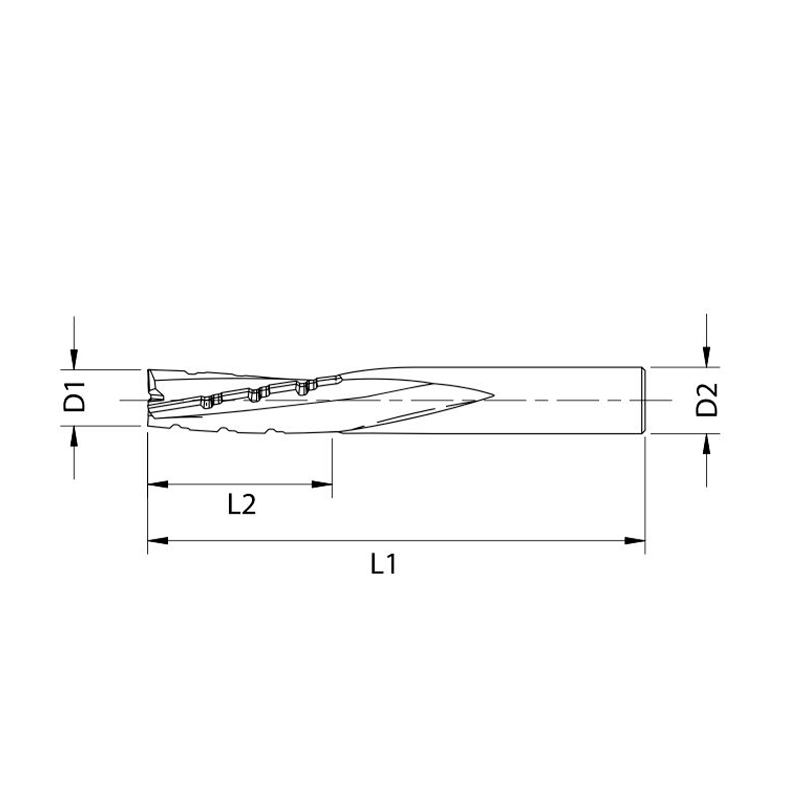

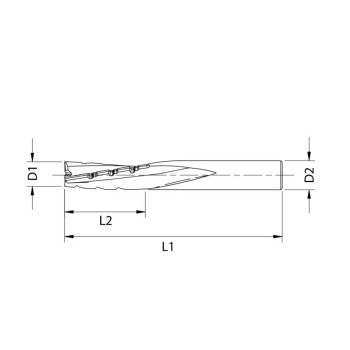

| Diagram |
|
| Reference | 8367504 |
| D1 (mm) | 8 |
| D2 (mm) | 8 |
| L2 (mm) | 22 |
| L1 (mm) | 64 |
| Z | 3 |
| Details |
|
Find the right CNC end mill for your project at the NomadTech Store
High wear-resistant solid carbide tool, designed with an innovative gradual-action chip breaker. Acts as a heat dissipator and cutting stabiliser, allowing machining of high-density materials at high feed rates, achieving quality finishes without marking the edge. Recommended for cutting:
· High-pressure laminates (HPL, Trespa®, Formica®).
· Bakelite.
· High-density cellulose laminates.
· Hardwoods and phenolic plywood.
RH: right-hand helix.
LH: left-hand helix.
