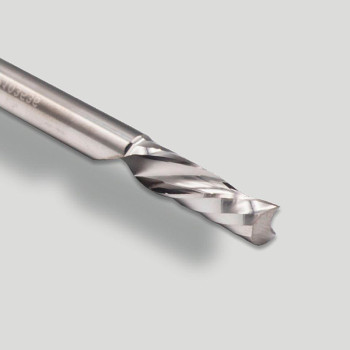

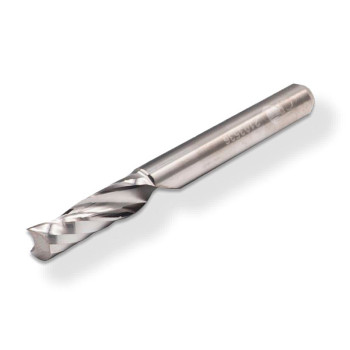

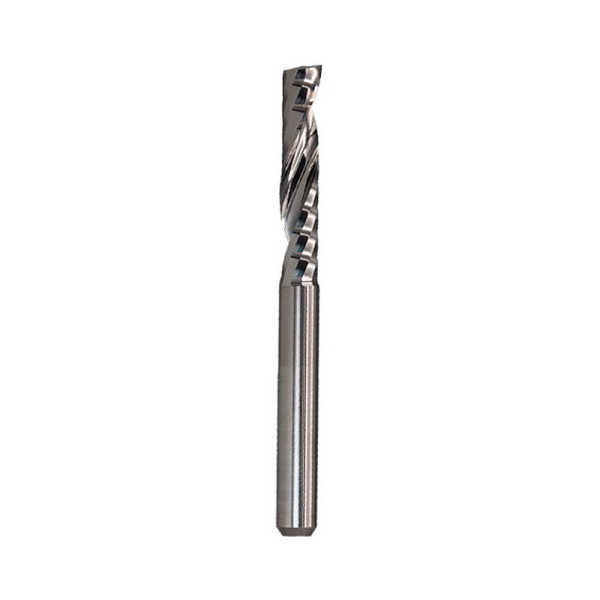

Multix PRO positive: 3 mm Ø solid carbide end mill, 3 mm shank, 15 mm cutting length, 1 f, polished positive helix
Reference: 4160517
€25.93
VAT included
Solid carbide tool with an extremely sharp single flute and polished multifaceted right-hand helix. Designed to deliver high performance and excellent finish quality when machining plastics, woods and wood derivatives commonly used in the signmaking sector. Its great versatility makes it the ideal choice for cutting:
· Cast or extruded acrylic.
· PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.
· Solid Surface materials: Corian®, Krion®, etc.
· Woods and derivatives (MDF, melamine chipboard, plywood, etc).
Security policy
Shipping policy
4160517
Data sheet
- Marca
- High-end CNC milling bits
- Applications
- Plastics
- Applications
- wood and wood derivatives
Specific References
| End mill name | Multix PRO positive |
|---|---|

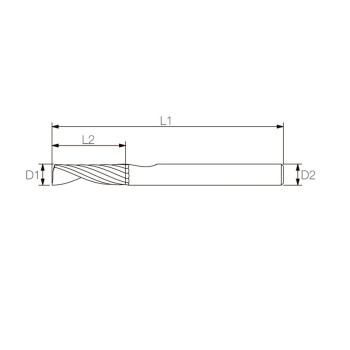

| Diagram |
|
| Reference | 4160517 |
| D1 (mm) | 3 |
| D2 (mm) | 3 |
| L2 (mm) | 15 |
| L1 (mm) | 50 |
| Z | 1 |
| Details |
|
