Reference: 4160515

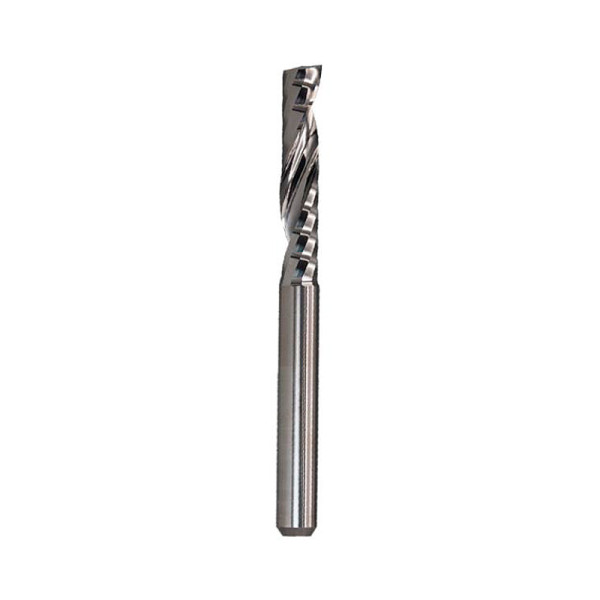

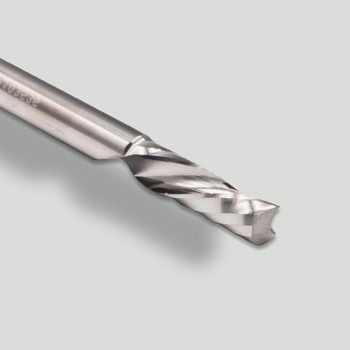

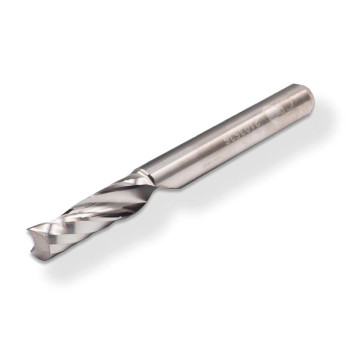

Solid carbide tool with an extremely sharp single flute and polished multifaceted right-hand helix. Designed to deliver high performance and quality finishes when machining plastics, wood and derived materials commonly used in the signmaking sector. Its great versatility makes it the ideal choice for cutting:
· Cast or extruded acrylic.
· PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.
· Solid Surface materials: Corian®, Krion®, etc.
· Woods and derivatives (MDF, melamine particleboard, plywood, etc).
Security policy
Shipping policy
Over 250 options for different applications and techniques, in a variety of colours, thicknesses and sizes.
We'll soon have new materials and accessories to boost your projects.
| End mill name | Multix PRO |
|---|---|

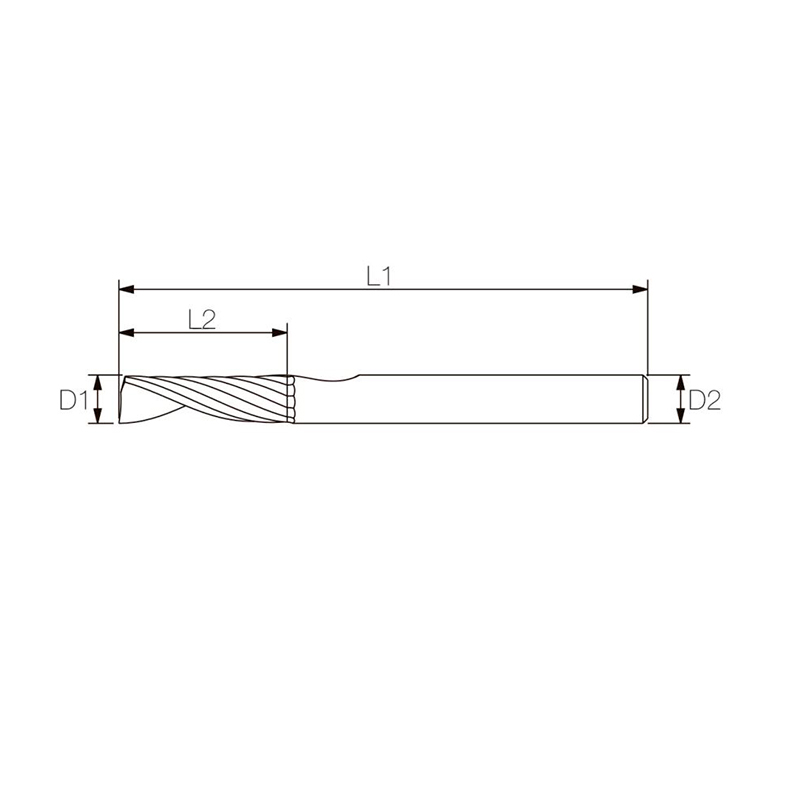

| Diagram |
|
| Reference | 4160515 |
| D1 (mm) | 3 |
| D2 (mm) | 3 |
| L2 (mm) | 10 |
| L1 (mm) | 40 |
| Z | 1 |
| Details |
|
Find the right CNC end mill for your project at the NomadTech Store
Solid carbide tool with an extremely sharp single flute and polished multifaceted right-hand helix. Designed to deliver high performance and quality finishes when machining plastics, wood and derived materials commonly used in the signmaking sector. Its great versatility makes it the ideal choice for cutting:
· Cast or extruded acrylic.
· PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.
· Solid Surface materials: Corian®, Krion®, etc.
· Woods and derivatives (MDF, melamine particleboard, plywood, etc).
