Reference: 2121503

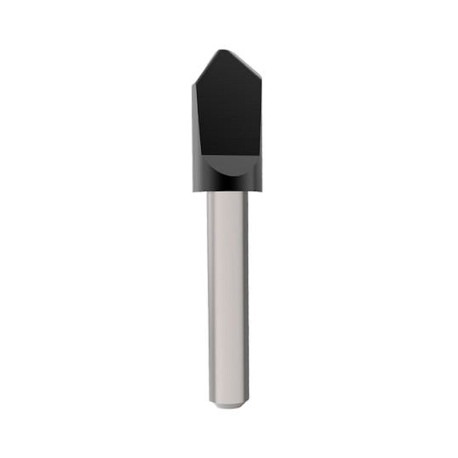

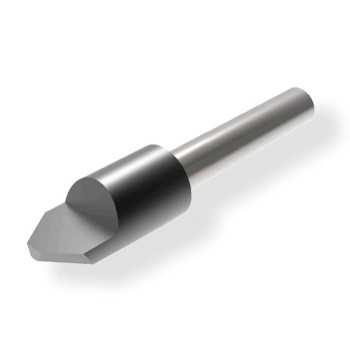

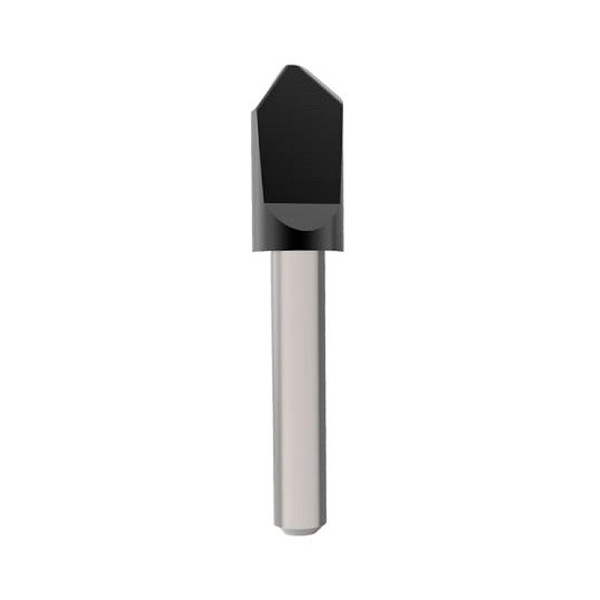

Solid carbide tool, designed for 90º bending and balanced for high-feed machining with a perfect finish. Especially recommended for slotting, chamfering and bending in:
· Aluminium composite panels (Dibond®, Alucobond® or similar).
· Aluminium and other non-ferrous metals.
Security policy
Shipping policy
| End mill name | ALU Folder |
|---|---|

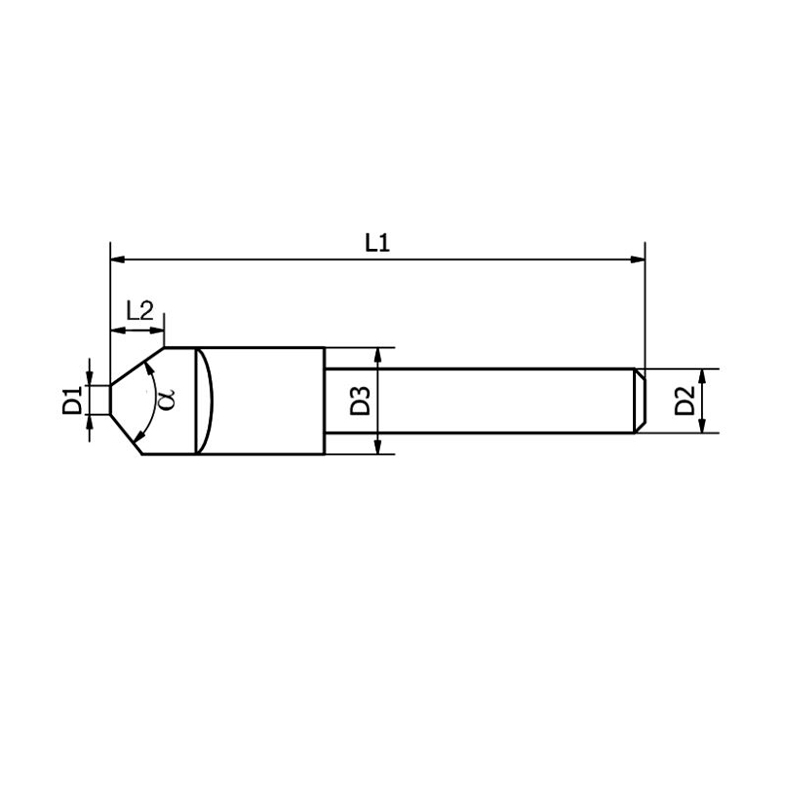

| Diagram |
|
| Reference | 2121503 |
| D1 (mm) | 3 |
| D2 (mm) | 6 |
| D3 (mm) | 10 |
| L2 (mm) | 3,5 |
| L1 (mm) | 50 |
| Angle | 90° |
| Z | 1 |
| Details |
|
Over 250 options for different applications and techniques, in a variety of colours, thicknesses and sizes.
We'll soon have new materials and accessories to boost your projects.
Find the right CNC end mill for your project at the NomadTech Store
Solid carbide tool, designed for 90º bending and balanced for high-feed machining with a perfect finish. Especially recommended for slotting, chamfering and bending in:
· Aluminium composite panels (Dibond®, Alucobond® or similar).
· Aluminium and other non-ferrous metals.
