Reference: 2202508

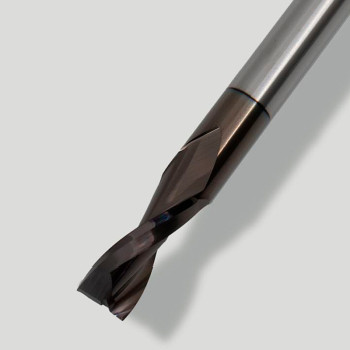

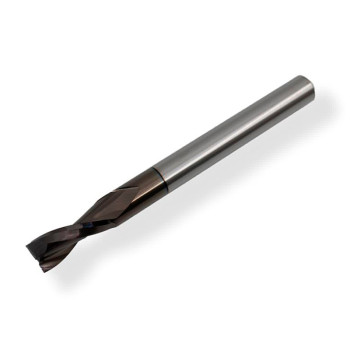

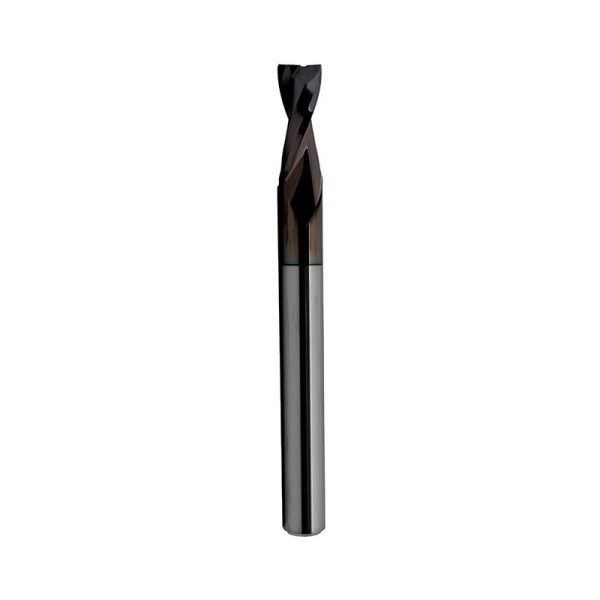

Coated solid carbide tool with right-hand helix, redesigned for machining non-ferrous metals. It resists abrasive wear during the cutting process and prevents aluminium from sticking to the cutting edge:
· Hard and abrasive aluminium alloys.
· Soft aluminium alloys prone to material build-up.
· Aluminium composite panels (Dibond®, Alucobond®, or similar).
· Copper, brass, zinc, etc.
Security policy
Shipping policy
Over 250 options for different applications and techniques, in a variety of colours, thicknesses and sizes.
We'll soon have new materials and accessories to boost your projects.
| End mill name | AluTec EVO |
|---|---|

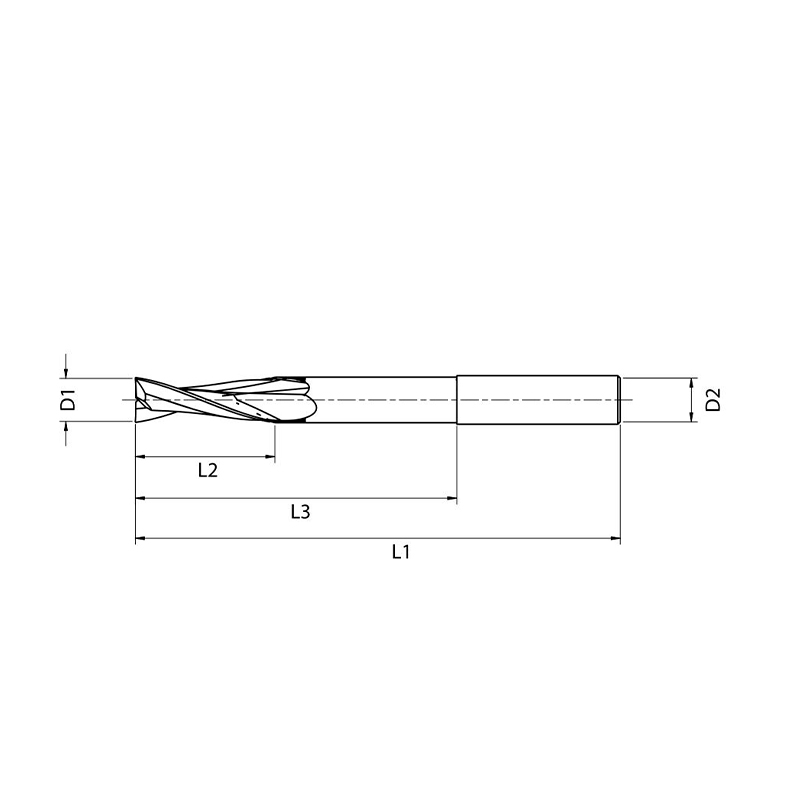

| Diagram |
|
| Reference | 2202508 |
| D1 (mm) | 6 |
| D2 (mm) | 6 |
| L2 (mm) | 14 |
| L1 (mm) | 60 |
| L3 (mm) | -- |
| Z | 2 |
| Details |
|
Find the right CNC end mill for your project at the NomadTech Store
Coated solid carbide tool with right-hand helix, redesigned for machining non-ferrous metals. It resists abrasive wear during the cutting process and prevents aluminium from sticking to the cutting edge:
· Hard and abrasive aluminium alloys.
· Soft aluminium alloys prone to material build-up.
· Aluminium composite panels (Dibond®, Alucobond®, or similar).
· Copper, brass, zinc, etc.
