Reference: 2124527

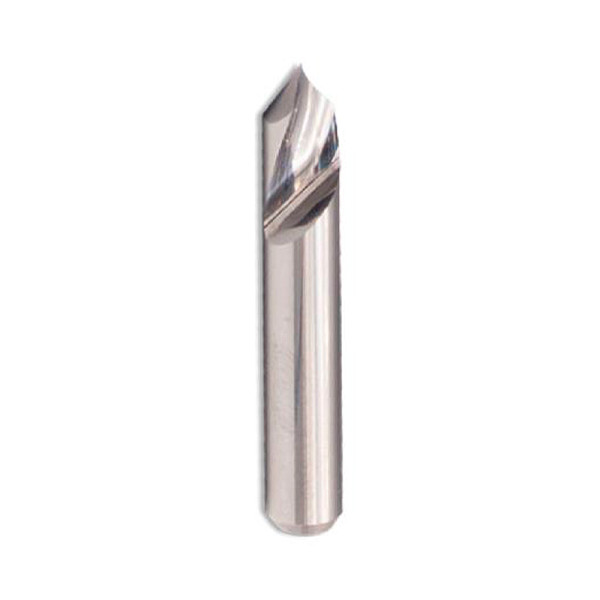

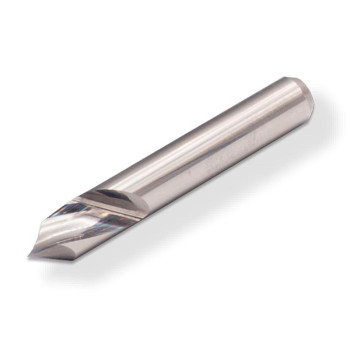

Solid carbide tool with micropolished helical flute, designed for engraving and folding. It enables rapid chip evacuation and guarantees clean, burr-free engraving surfaces on both plastics and non-ferrous metals.
· Cast or extruded acrylic.
· PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.
· Solid Surface materials: Corian®, Krion®, etc.
· Aluminum and aluminum composites: Dibond®, Alucobond®, etc.
· Copper, brass, zinc, etc.
Security policy
Shipping policy
| End mill name | Helix Graver |
|---|---|

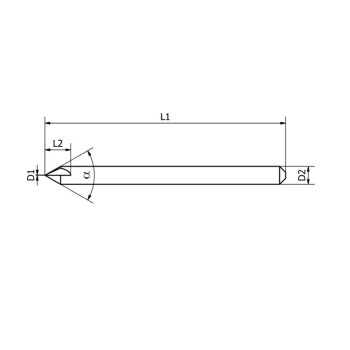

| Diagram |
|
| Reference | 2124527 |
| D1 (mm) | 0,5 |
| D2 (mm) | 8 |
| L2 (mm) | 12 |
| L1 (mm) | 50 |
| Angle | 90º |
| Z | 1 |
| Details |
|
Over 250 options for different applications and techniques, in a variety of colours, thicknesses and sizes.
We'll soon have new materials and accessories to boost your projects.
Find the right CNC end mill for your project at the NomadTech Store
Solid carbide tool with micropolished helical flute, designed for engraving and folding. It enables rapid chip evacuation and guarantees clean, burr-free engraving surfaces on both plastics and non-ferrous metals.
· Cast or extruded acrylic.
· PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.
· Solid Surface materials: Corian®, Krion®, etc.
· Aluminum and aluminum composites: Dibond®, Alucobond®, etc.
· Copper, brass, zinc, etc.
