Compare the Ion Plasma Basic and Pro CNC plasma cutting machines
Explore the features
Usable work area
750 × 1,100 mm.
1,000 × 2,000 mm.
Plasma generator included
Cevik PRO CUT61 inverter.
50 A on single-phase (230 V) or 60 A on three-phase (400 V).
GYS 45 A generator.
Torch
Manual torch adapted for CNC.
Vertical, CNC-specific.
Torch height control (THC)
Included. Keeps the ideal cutting distance even on warped sheets.
Included. Keeps the ideal cutting distance even on warped sheets.
Water table
Included.
Included.
Cut quality
Good. Entry-level option.
Superior.
Endurance during long work sessions
Lower.
Higher.
Consumables durability
Standard.
Much higher.
Maximum cutting thickness
Up to 20 mm on three-phase 400 V (60 A).
16 mm recommended.
Up to 15 mm in steel (12 mm in stainless steel and aluminium, 8 mm in copper).
The Pro's advantage is not maximum thickness, but cut quality, endurance during long sessions and consumables durability.
Average payback period
52 days.
77 days.
Choose the plasma cutting machine that best suits you

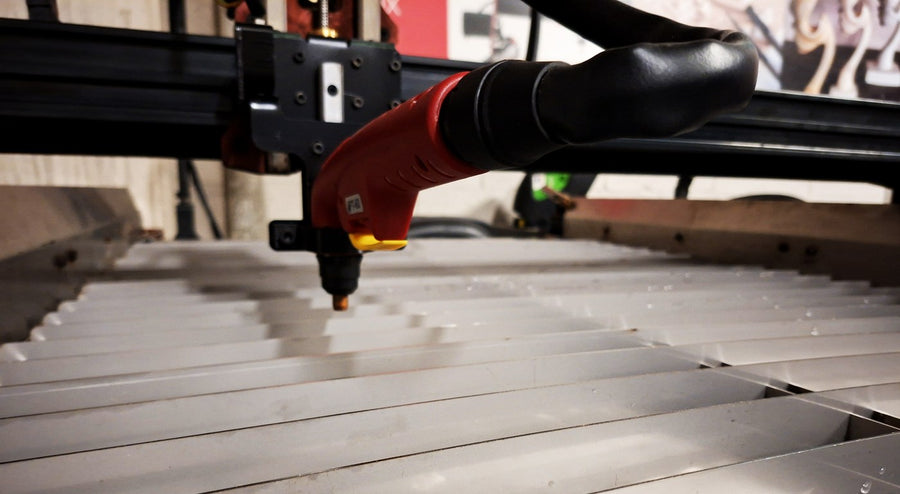

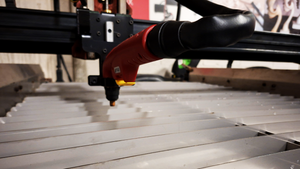

Ion Plasma Basic
Complete CNC plasma cutting solution, with inverter and torch included. The entry-level option: simpler, compact and with a manual torch.

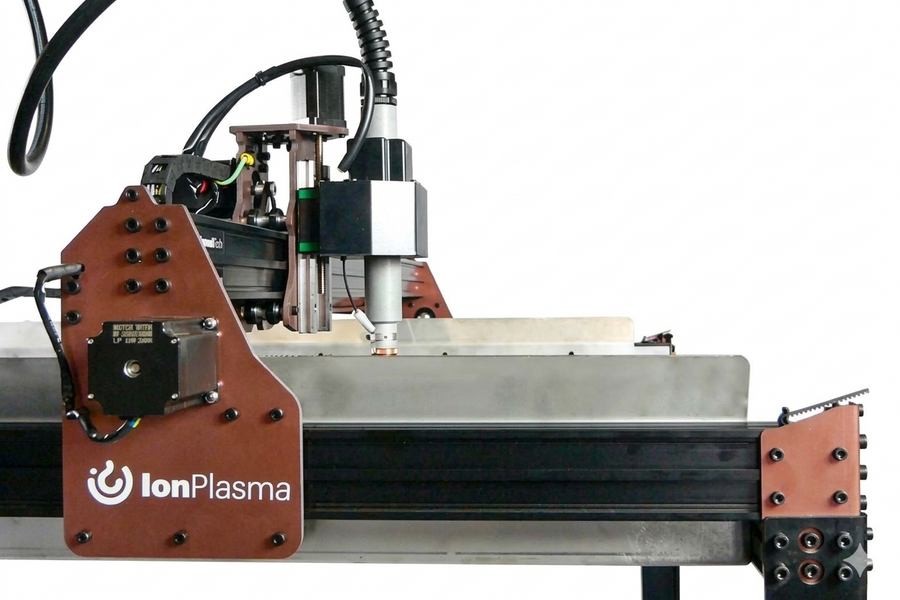

Ion Plasma Pro
CNC plasma cutting machine for the professional workshop, with GYS generator and THC.
